Connectors for assembling a variety of furniture and structures

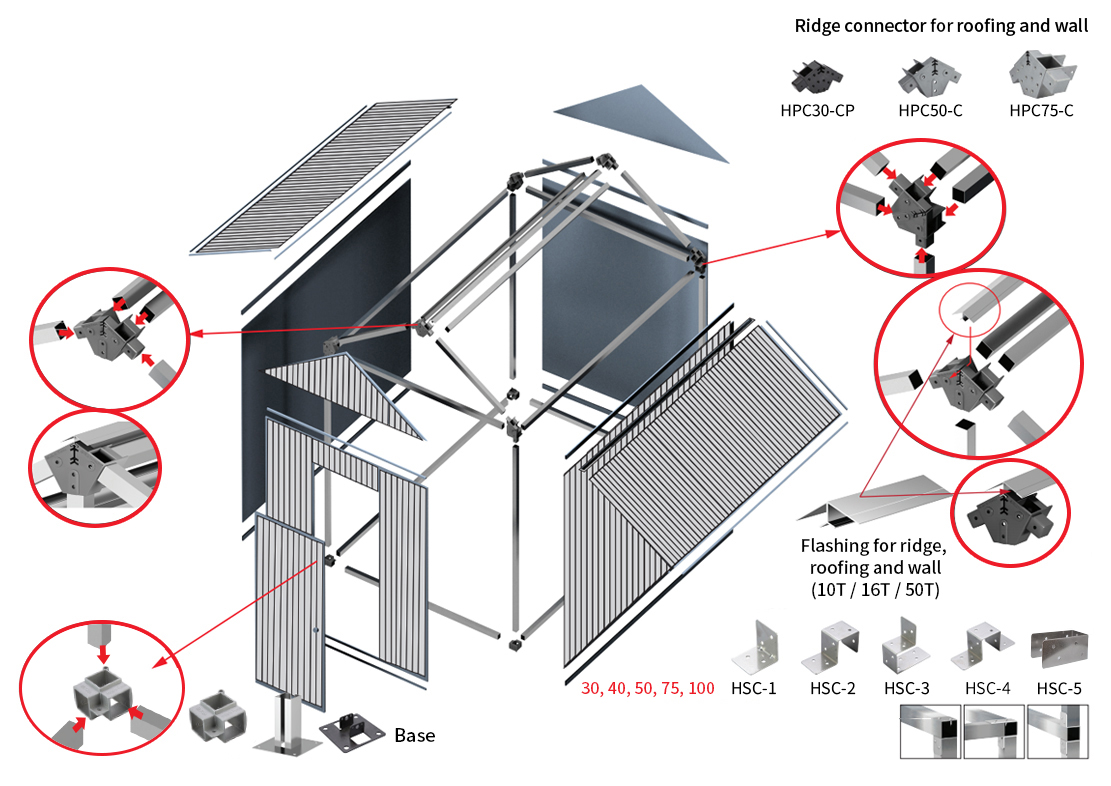

After assembling the frame of the structure using the HOMEFIX® connector, you can establish prefabricated structures for various purposes using the various roof and wall materials such as polycarbonate, double-layered boards, panels, and tents.
- Model
- HSC30-1
- Size
- 30X30
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC30-2
- Size
- 30X30
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC30-3
- Size
- 30X30
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC30-4
- Size
- 30X30
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HPC30 BL
- Size
- 30X30
- Materials
- Aluminum
- Usage
- Corner
- Model
- HPC30-BLP
- Size
- 30X30
- Materials
- Polycarbonate
- Usage
- Corner
- Model
- HPC30 BT
- Size
- 30X30
- Materials
- Aluminum
- Usage
- T-type
- Model
- HPC30 BTP
- Size
- 30X30
- Materials
- PC ABS
- Usage
- T-type
- Model
- HPC30-CP
- Size
- 30X30
- Materials
- Polycarbonate
- Usage
- Roofing
- Model
- HSC40-1
- Size
- 40X40
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC40-2
- Size
- 40X40
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC40-3
- Size
- 40X40
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC40-4
- Size
- 40X40
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HPC40-BLP
- Size
- 40X40
- Materials
- Polycarbonate
- Usage
- Brackets for shelves
- Model
- HSC50-1
- Size
- 50X50
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC50-2
- Size
- 50X50
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC50-3
- Size
- 50X50
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC50-4
- Size
- 50X50
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC50-5
- Size
- 50X50
- Materials
- STS 2T
- Usage
- Support connector
- Model
- HSC50-CAP
- Size
- 50X50
- Materials
- ABS
- Usage
- Pipe cap
- Model
- HPC50-BASE
- Size
- 50X50 / 90X38
- Materials
- Painted Steel
- Usage
- Base
- Model
- HPC50
- Size
- 50X50
- Materials
- Aluminum
- Usage
- Base / Shalves
- Model
- HPC50-C
- Size
- 50X50
- Materials
- Aluminum
- Usage
- Roofing
- Model
- HSC75-1
- Size
- 75X75
- Materials
- GI-3T
- Usage
- Support connector
- Model
- HSC75-2
- Size
- 75X75
- Materials
- GI-3T
- Usage
- Support / Joist connector
- Model
- HSC75-3
- Size
- 75X75
- Materials
- GI-3T
- Usage
- Support connector
- Model
- HSC75-4
- Size
- 75X75
- Materials
- GI-3T
- Usage
- Support connector
- Model
- HSC75-5
- Size
- 75X75
- Materials
- Galvanized Iron
- Usage
- Support connector
- Model
- HPC75C
- Size
- 75X75
- Materials
- Aluminum
- Usage
- Roofing
- Model
- HSC100-1
- Size
- 100X100
- Materials
- GI-3T
- Usage
- Support connector
- Model
- HSC100-2
- Size
- 100X100
- Materials
- GI-3T
- Usage
- Support connector
- Model
- HSC100-3
- Size
- 100X100
- Materials
- GI-3T
- Usage
- Support connector
- Model
- HSC100-4
- Size
- 100X100
- Materials
- GI-3T
- Usage
- Support connector
- Model
- HSC100-5
- Size
- 100X100
- Materials
- GI-3T
- Usage
- Support connector
- Model
- RF-S1
- Size
- 30X30
- Materials
- HGI-2T
- Usage
- Pipe reinforcement
- Model
- RF-S1
- Size
- 50X50
- Materials
- HGI-3T
- Usage
- Pipe reinforcement
- Model
- RF-S1
- Size
- 75X75
- Materials
- HGI-3T
- Usage
- Pipe reinforcement
- Model
- RF-S3
- Size
- 75X50
- Materials
- HGI-3T
- Usage
- Pipe reinforcement
- Model
- RF-S4
- Size
- 75X50
- Materials
- HGI-3T
- Usage
- Pipe reinforcement
- Model
- RF-S5
- Size
- 75X75 / 100X100
- Materials
- HGI-3T
- Usage
- Reinforcement
- Model
- RF-S7
- Size
- 50X50
- Materials
- HGI-3T
- Usage
- Pipe reinforcement
- Model
- RF-S7
- Size
- 75X75 / 100X100
- Materials
- HGI-3T
- Usage
- Pipe reinforcement
- Model
- RF-S8
- Size
- 50X50 / 75X75
- Materials
- HGI-3T
- Usage
- Reinforcement
- Model
- RF-S10
- Size
- 75X75X150
- Materials
- HGI-3T
- Usage
- Reinforcement
- Model
- HST-Spinner Tool
- Package
- 2ea/set
- Materials
- STS 304
- Usage
- Remove pipe spring
- Model
- HPC30-HS
- Size
- 30X30
- Materials
- STS 3T
- Usage
- H-Beam, Pipe Connector

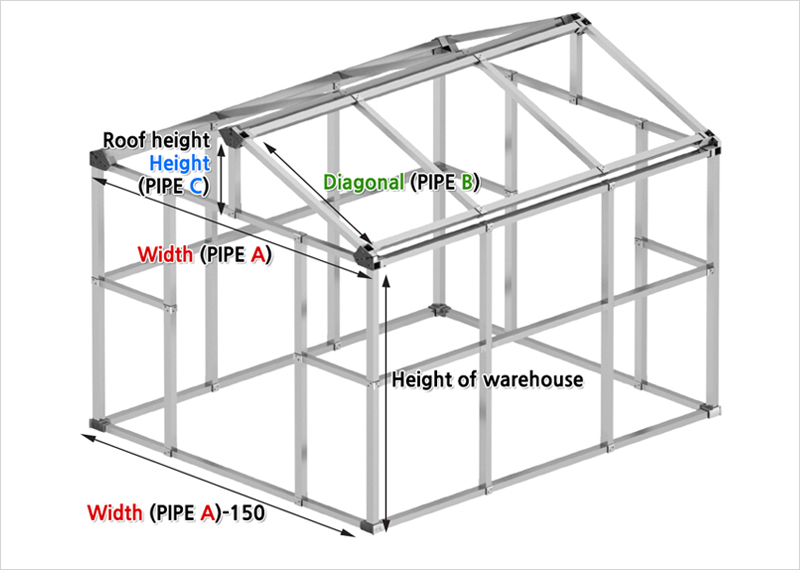

Ex. Materials required for 3m X 3m structure frame (Standard: 75X75 square pipes)
| Category | Product name | Purpose | Specification | Quantity |
|---|---|---|---|---|
| Support / Joist Connector | HSC-1 | Pipe fixing for reinforcement | Stainless steel | 8 |
| HSC-2 | 4 | |||
| HSC-3 | 0 | |||
| HSC-4 | 2 | |||
| Roofing end top connector | HPC75-C | Gable roof | Aluminum | 6 |
| 75x75 Square pipe | 75x75x2T | Post of frame | Galvanized Steel | 12 |
| Base | HPC75 | Post base | 4 |
※ The amount of material shown in the above table is for illustrative purposes only. The actual amount varies depending on the site conditions, so be sure to consult with the contractor to find the exact amount of materials.
